Klark Teknik DN1248-PLUSFM 12x48 Microphone Splitter Balanced Transformer New


Product Code:
Availability: In Stock
Price:
$5,119.30

Qty: - +
   - OR -
Klark Teknik
DN1248-PLUSFM
12x48 Microphone Splitter with Dual Power Supply Option & Balanced Transformer
New

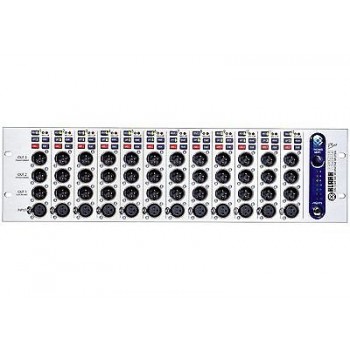

Housed in a 3RU chassis with internal power supply, a single DN1248 Plus provides twelve input channels, each feeding four outputs, two of which are electronically balanced and two that are transformer isolated.

The "FM" version combines the advantages of both the "DP" and "AT" models, providing transformer balancing for all 48 outputs, as well as a second, linked internal PSU for auto-backup purposes. The unit can be retrofitted to the multipin connector and input/output configuration of the user's choice.

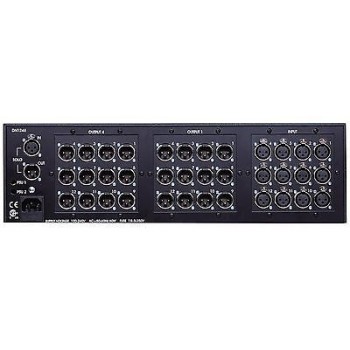

Outputs 1& 4, as well as duplicates of all the inputs can be found on the rear of the unit. The microphone preamplifier is a Midas Heritage series unit, specially adapted to the task and providing all the great sound and headroom for which Midas preamps are world famous.

Features:

  • New connector configuration allows instant system upgrade with no re-wiring
  • Unique Klark-Teknik design provides ultimate audio quality
  • Three-year international factory warranty

Inputs:

  • Two parallel connected female XLR connectors, one front, one rear
  • Input Impedance > 2 kOhm
  • CMRR > -100dB @ 100Hz to 10kHz
  • Equivalent input noise < - 100dBu @ unity gain
  • Connectors: 3 pin female XLR (external), 3 way terminal strip (internal)
  • Signal present level > - 25dBu
  • Signal clip level > + 21dBu

Outputs (Electronically Balanced):

  • One output with one front and one rear panel male XLR connectors, one output with one rear panel male XLR connector
  • Source impedance: 50 Ohm
  • Minimum Load: 600 Ohm
  • Max Level > + 21dBu @ 1kHz
  • Connectors: 3 pin male XLR (external), 3 way terminal strip (internal)

Outputs (Transformer Balanced & Isolated):

  • One male XLR connector on the front panel for each output
  • Source impedance: 70 Ohm
  • Minimum Load: 600 Ohm (-3dB level loss into 200 Ohm)
  • Max Level + 18dBu @ 1kHz
  • Connectors: 3 pin male XLR (external), 3 way terminal strip (internal)

Performance (Electronically Balanced Outputs):

  • Frequency response + 0 / -0.5dB 20Hz to 20kHz
  • Distortion (THD+N) < 0.01 % @ 1kHz +4dB

Performance (Transformer Balanced & Isolated Outputs):

  • Frequency response + 0 / -1.0dB 20Hz to 20kHz
  • Distortion < 0.04 % @ 1kHz +4dB

Terminations:

  • Audio Inputs/Outputs: 3 pin XLR
  • Power: IEC

Power Requirements:

  • Voltage: 110 to 240V
