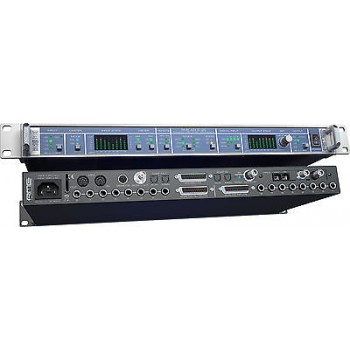

RME ADI-8QS 8 Channel 24 Bit/192 kHZ AD/DA Converter

Analog and digital limiters, 4 hardware reference levels up to +24 dBu, AES/EBU and ADAT I/O (optional MADI I/O) at up to 192 kHz, remote control via MIDI, digital input and output trimming for full level calibration, volume control for all 8 analog outputs, either separately or globally, digital thru-mode, operation over a wide voltage range and many more features make the QS truly unique.

The most important features of the QS:

Get yours today, with the security of our 85 plus years of experience and the Sam Ash Direct efficient order processing, your satisfaction is guaranteed

Technical Specifications

Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path

Output AD: 4 x AES/EBU, 2 x ADAT optical, optional MADI

Input DA: 4 x AES/EBU, 2 x ADAT optical, optional MADI

Output DA:1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu. DC-coupled audio path

Dynamic Range AD: 117 dBA

THD AD: < -110 dB (< 0.00032 %)

THD+N AD: < -104 dB (< 0.00063 %)

Crosstalk AD: > 130 dB

Dynamic Range DA: 120 dBA unmuted

THD DA: < -104 dB (< 0.00063 %)

THD+N DA: < -102 dB (< 0.0008 %)

Crosstalk DA: > 110 dB

Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by 6 dB in steps of 0.5 dB via Digital Input Trim

Output level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu, +4.2 dBu, each adjustable by +/- 6 dB in steps of 0.5 dB

Output level global: 0 down to -96 dB in 48 steps

Sample rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word)

Frequency response AD/DA, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)

Frequency response AD/DA, -0.5 dB: < 5 Hz - 44.6 kHz (sf 96 kHz)

Frequency response AD/DA, -1 dB: < 5 Hz - 63.4 kHz (sf 192 kHz)

Power supply: Internal switching mode ps, 100 V-240 V AC

Dimensions (WxHxD) 483 x 44 x 200 mm

Manufacturer Warranty: 2 years
