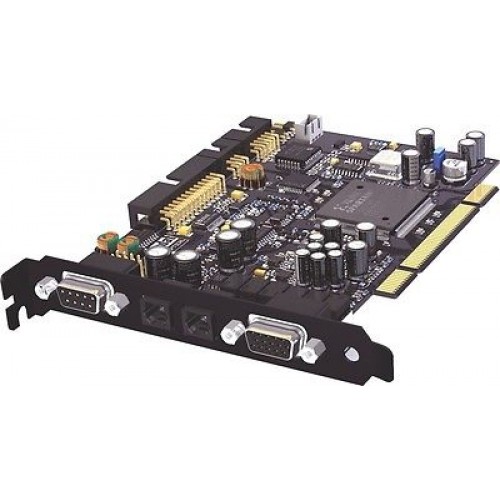

RME HDSP 9632 24 Bit / 196 kHz 32 Channel ADAT PCI Card

Versatile PCI Audio Interface!

RME presents the world's most versatile PCI Audio Interface - the Hammerfall HDSP 9632. This card makes the dream of an All-In-One solution for every possible application come true. As usual, RME has not made any compromises: Latest 192kHz AD- and DA-converters with more than 110dB signal to noise ratio, all inputs and outputs simultaneously operational, easy-to-install optional high-quality analog expansion boards, the famous TotalMix, a newly developed sensational clock section with maximum jitter suppression of external clock signals - all this combines into a 'soundcard' that the world has been waiting for so long.

The HDSP 9632 offers stereo RCA input and output, ADAT & S/PDIF I/O and MIDI I/O.

The HDSP 9632 also supports the addition of optional expansion audio expansion PCI boards from RME as well, giving your computer-based system more I/O options than just about any other format on the market!


Features:

• Stereo analog in- and output, 192 kHz/24 bit, > 110 dB SNR

• Optional analog expansion boards with 4 balanced in- or outputs

• All analog I/Os capable of 192 kHz, constant number of available channels

• 1 ADAT digital I/O, supporting 96 kHz S/MUX operation

• 1 SPDIF digital I/O, 192 kHz-capable

• 1 Breakout cable for coaxial SPDIF*

• Up to 16 I/Os can be used simultaneously!

• 1 Stereo headphone output, parallel to the analog out, additional level settings

• 1 MIDI I/O with 16 channels of hi-speed MIDI via breakout cable

• TotalMix: 512-channel mixer with 40 bit internal resolution

• Supported sample frequencies: 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

• 8 buffer sizes/latencies available: 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms, 186 ms

• ASIO zero CPU load technology: 0 (zero!) % CPU load when using ALL 32 channels!

• All settings changeable in realtime

• Automatic and intelligent master/slave clock control

• Enhanced Mixed mode: All inputs and outputs simultaneously operational

• TMS (Track Marker Support): Supports CD/DAT start-IDs and the read out of CD subcode

• Unique status windows for record and playback, showing mode and sample rate

• Analog input and output level configurable LoGain/+4 dBu/-10 dBV via software

• Balanced analog input and output, 24 bit/192 kHz converter. Dynamic range >110 dBA

• Low impedance output (75 ohm) for headphones, stepless output level through software faders

• Speaker Protection minimizes noise during power on/off

• Digital inputs and outputs ground-free transformer coupled

• Super low jitter design: < 1 ns in PLL mode (44.1 kHz, optical in)
