Rane MLM 103 Mic/Line Mixer NEW!

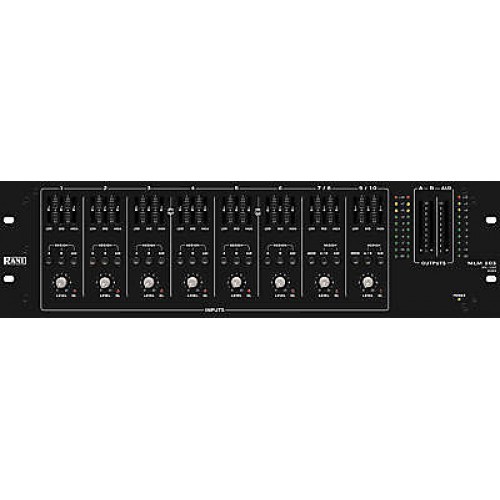

 Rane MLM 103 Mic/Line Mixer

The Rane MLM 103 is a multi application, road worthy audio mixer designed for fixed installation or sound reinforcement use. This 3 space rack-mountable mixer features a total of 10 inputs capable of either mic or line level operation. Channels 1 through 6 are designed for mono operation while channels 7 and 8 are stereo paired (7/8 & 9/10). Every input and output features balanced Euro-Block connectors. Also featured is a 3 band equalizer on every channel.

• 6 Mono and 2 Stereo Inputs

The MLM 103 features a total of 10 inputs. Channels 1 through 6 are mono while 7 and 8 are stereo paired (7/8 & 9/10).

• Mic or Line Level Operation

All inputs are capable of excepting Mic or Line Level signal. Independent Mic/Line switches are located on every input channel allowing both, Line and Mic level devices to operate simultaneously.

• 3 Band EQ on Every Input Channel

A 3 band (hi, mid, low) EQ section is located on every input channel.

• Direct, A/B & AUX Outputs

Mono channels 1-6 feature direct outputs and can be routed through the A/B and AUX outputs as well. A/B and AUX outputs provide Mono and Stereo monitoring while providing routing options to recorders, P.A. systems etc.

• Euro Block Connectors

All inputs and outputs feature Euro Block locking connectors for balanced, high gain, low noise floor operation.

Inputs

Active Balanced Euroblock Connectors:
Channels 1-10
Stereo Line Inputs

Output

Active Balanced Euroblock Connectors:
Direct Output channels 1-6
A/B Outputs
AUX Output

Monitor/Headphone Out

No

Impedance

Mic Inputs:
Mic Mode - 1.49k ohms
Line Mode - 8k ohms
Stereo Line Inputs: 10k ohms
Output Impedance: 200 ohms

Gain

Mic Inputs:
Mic Mode 12 to 60 dB
Line Mode -4 / +12 dB
Stereo Line Inputs: -infinity to +12

THD & Noise

Mic Inputs: 0.01
Stereo Line Inputs: 0.005
Output Impedance: -100dB noise floor

Frequency Response

Mic Inputs: 50Hz-50kHz mic gain=60dB
Stereo Line Inputs:10Hz - 50kHz mic gain=12dB

Metering

Type: Average dBu
Range: -20 to +10
Number of Segments: 10
Peak Hold: 1 sec

Controls

Mic/Line Input Level Control 1-6: Sealed Rotary Pots
Stereo Line Input Level Control 7/8 and 9/10: Sealed Rotary Pots
Equalizer Level Controls 1-6: Mini Faders (3 per ch)
A/B and AUX Output Level: Mini Faders
Stereo Line Output Assign Buttons ch 1-10

Phantom Power

12 VDC

Power

85 to 250 VAC, 50/60Hz, .24amp UL/CSA/CE pending

Dimensions

5.25 x 19 x 5.3" (13.3 x 48.3 x 13.5cm) (H x W x D)
3 rack space unit

Weight

9 lb (4.1 kg)
