Klark Teknik DN1248-PLUSDP 12x48 Microphone Splitter Dual Power Supply New

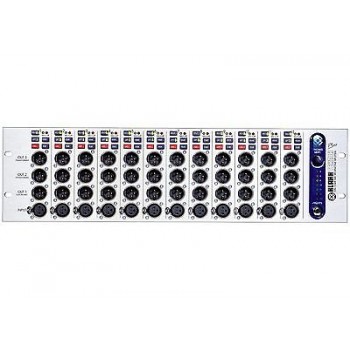

Housed in a 3RU chassis with internal power supply, a single DN1248 Plus provides twelve input channels, each feeding four outputs, two of which are electronically balanced and two that are transformer isolated.

The "DP" Version provides a second, linked internal PSU to provide auto-backup in the case of a PSU failure.

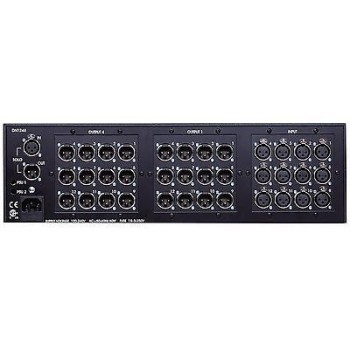

Outputs 1& 4, as well as duplicates of all the inputs can be found on the rear of the unit. The microphone preamplifier is a Midas Heritage series unit, specially adapted to the task and providing all the great sound and headroom for which Midas preamps are world famous.

Features:

• New connector configuration allows instant system upgrade with nore-wiring
• Unique Klark-Teknik design provides ultimate audio quality
• Three-year international factory warranty

Inputs:

• Two parallel connected female XLR connectors, one front, one rear
• Input Impedance > 2 kOhm
• CMRR > -100dB @ 100Hz to 10kHz
• Equivalent input noise < - 100dBu @ unity gain
• Connectors: 3 pin female XLR (external), 3 way terminal strip (internal)
• Signal present level > - 25dBu
• Signal clip level > + 21dBu

Outputs (Electronically Balanced):

• One output with one front and one rear panel male XLR connectors, oneoutput with one rear panel male XLR connector
• Source impedance: 50 Ohm
• Minimum Load: 600 Ohm
• Max Level > + 21dBu @ 1kHz
• Connectors: 3 pin male XLR (external), 3 way terminal strip (internal)

Outputs (Transformer Balanced & Isolated):

• One male XLR connector on the front panel for each output
• Source impedance: 70 Ohm
• Minimum Load: 600 Ohm (-3dB level loss into 200 Ohm)
• Max Level + 18dBu @ 1kHz
• Connectors: 3 pin male XLR (external), 3 way terminal strip (internal)

Performance (Electronically Balanced Outputs):

• Frequency response + 0 / -0.5dB 20Hz to 20kHz
• Distortion (THD+N) < 0.01 % @ 1kHz +4dB

Performance (Transformer Balanced & Isolated Outputs):

• Frequency response + 0 / -1.0dB 20Hz to 20kHz
• Distortion < 0.04 % @ 1kHz +4dB

Terminations:

• Audio Inputs/Outputs: 3 pin XLR
• Power: IEC

Power Requirements:

• Voltage: 110 to 240V
